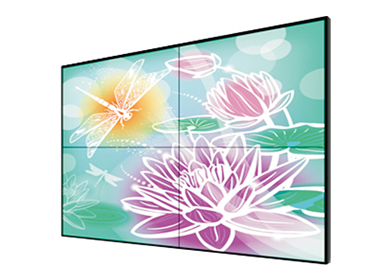

LCD splicing screen can be used as a monitor and can be used as a super screen. According to the requirements of different use, the functions of variable and variable large screen are realized: single screen display, single screen display, arbitrary combination display, full screen LCD splicing, double splicing liquid crystal screen splicing, vertical screen display, image border optional compensation or cover, support digital signal roaming, zoom stretching, cross screen display. It shows that all kinds of display plans are set up and run, and all HD signals are processed in real time.
产品功能 |
● VGA 图像模式下自动聚焦调整功能 ● 支持NTSC 7.5IRE 功能 |
46寸超窄边液晶拼接主要功能参数 型号：GWX-4603 | ||
液晶面板 | 面板名称 | 三星超窄边DID液晶屏LTI460HN11 |
屏幕尺寸 | 46寸 | |
屏幕比例 | 16:9 | |
亮度 | 500cd/m² | |
分辨率 | 1920×1080 | |
对比度 | 4000:1 | |
外形尺寸 | 1021.9mm×576.6mm×124mm | |
重量 | 19kg | |
色彩 | 16.7M | |
响应时间 | 6ms | |
信号和通讯接口 | DVI输入 | DVI-D×1 |
VGA输入 | D-Sub×1 | |
YPbPr输入 | 1组（BNC×1） | |
S-Video输入 | 1组（BNC×2） | |
CVBS输入/出 | BNC×2 | |
通讯接口 | RS232×2 | |
拼接墙参数 | LCD屏数量 | 任意数量拼接 |
拼接边缝 | 3.5mm | |
拼接墙安装方式 | 落地机柜/墙体壁挂/移动钢架/吊装/落地钢架 | |
分辨率（幕墙） | 1920×1080向下兼容 | |
电源输入 | 110-250V（50/60Hz） | |
功率（每单元） | 235W | |
工作温度 | 0℃-40℃ | |
工作湿度 | 10-90% | |
